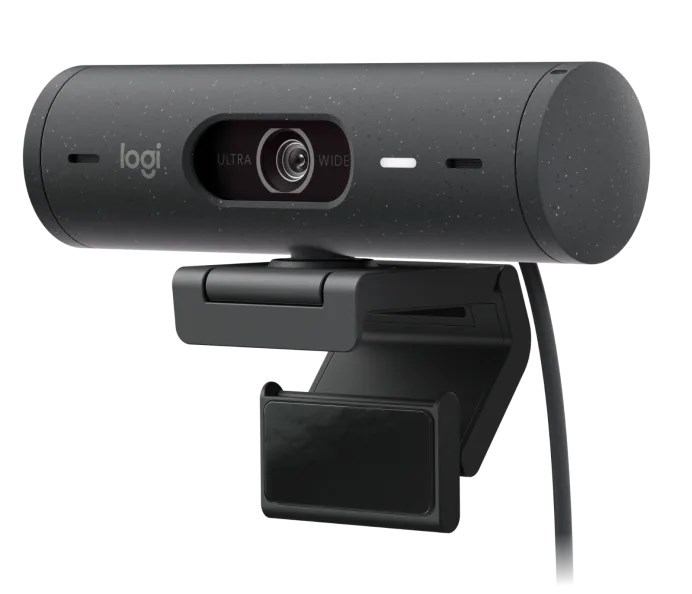

BRIO 505

Full HD 1080p webcam with light correction, auto-framing, and Show Mode

TECHNICAL SPECIFICATIONS

DIMENSIONS

Webcam only

Height
31.5 mm

Width
110 mm

Depth
31.5 mm

Webcam + Mount

Height
51.5 mm

Width
110 mm

Depth
45 mm incl. mount clip

Weight
121 g, incl. mount clip & cable

Attached Cable length
1.5 m

Mounting Clip

Height
25 mm

Width
45.8 mm

Depth
65.1 mm

Weight
40 g, incl. Removable mount adapter

PACKAGE CONTENTS

Brio 505 with attached USB-C cableMount clip with removable mount adapterUser documentation

TECHNICAL SPECIFICATIONS

Multiple resolutions
1080p/30fps (1920x1080 pixels)720p/60fps (1280x720 pixels)

Camera megapixel
4MP

Diagonal field of view (dFoV)
90°/78°/65°

Hardware zoom
4x Digital zoom

Focus type
Autofocus

Lens type
Glass

Built-in Microphone type
Stereo microphone

Mic range
Up to 1,22 m

USB connectivity
USB-C plug-and-play

Privacy shutter
Integrated

WARRANTY INFORMATION

3-year limited hardware warranty

SYSTEM REQUIREMENTS

Required
Available USB-C port

Works with
Windows, macOS, or ChromeOS and virtually any popular video calling platform. 4Logi Tune not available for ChromeOS

Certified for
Microsoft Teams, Zoom, Google Meet, Works With Chromebook

Compatible with
Windows 8 or later (Windows 8.1 or higher required for resolutions greater than 1080p)macOS 10.10 or laterChromeOS(2GB RAM or more needed for 1080p video streaming and 1GB RAM is typically needed for streaming 720p
